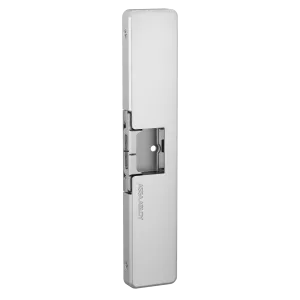

7800-630
Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, Grade 1, 1/2" Thick Strike Body, Non-Handed, Satin Stainless Steel
Product Specs
Vendor Assa Abloy
Manufacturer Adams Rite
SKU 7800-630
UID ADA1007800630
Grade Grade 1
Installation Commercial
Unit of Measure Each
Finish
630/US32D
Finish Description Satin Stainless Steel
Finish Family Matte Silver
Technical Specs
Function Fail Safe/Fail Secure
Operating Voltage 12/24 VDC
Amp Draw .45 @ 12V .25 @ 24V
Keeper Size Starwheel Keeper
For Use With Rim Exit Devices
Faceplate Depth 1/2"
Holding Force 1500 lbs.
Frame Application Metal or Wood
Product Type Electric Strikes
7800 Series Electric Strikes
The Adams Rite 7800 Electric Strike is intended for use with Adams Rite rim exit devices with a Starwheel/Interlocking latchbolt (8800 & 8700 Series, EX88), and in aluminum, hollow metal or wood applications.
This low-profile, non-handed, surface-mounted electric strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 pounds [680.4 kg] of holding force in fail-secure mode. This strike boasts electrical remote control, allowing door to open without actuation of an exit device. Internally mounted dual solenoid operates on 12 or 24 VDC power.
Features:
- Strike Dimensions: 1-13/4" x 9" x 9/16" deep [44.5 mm x 229 mm x 14.2 mm deep]
- Strike Opening: Bolt retaining keeper is stainless steel. 1" x 1-1/2" x 1/2" deep [24.4 mm x 38.1mm x 12.7 mm deep]. Strike only accepts Starwheel/Interlocking latching mechanism.
- Faceplate: Not separate.1-3/4" x 9-1/64" x 9/16" [44.5 mm x 229 mm x 14.2 mm deep]
- Compatibility: Accommodates Starwheel/Interlocking latching mechanism of Adams Rite 8800, 8700, EX88 Series Rim Exit Devices.
- Standard Package: Individually boxed with 1/16" and 1/8"spacer plates, mounting screws and installation instructions. Spacer Plates included to accommodate varying door gaps. Screws for wood applications not provided.
Electrical:
- Voltage: Field selectable, dual voltage, 12 or 24 VDC.
-
Current Draw:
0.45A at 12 VDC
0.25A at 24 VDC - Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Options and Accessories:
- Ships standard with one 1/16" and 1/8"spacer plate. Units ordered in 613E, 628E, 630, & BSP finishes will be made of stainless steel to match. All other finishes will receive black stainless steel spacers. Additional spacer plates can be ordered separately.
- Available with two monitoring options: Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status (M). Latchbolt monitor (L)
- ELX-ElectroLynx® Adapter: Connects Adams Rite electrified products to ElectroLynx system
Easy
Anyone who can read instructions and use basic tools can install this product.
