[Interface signals]：serial port (RS485), network port (RJ45)
[Product size]：226*130*28.5mm
[Network protocol]：TCP/UDP/MQTT/HTTP/IP
[Product weight]：720g±5

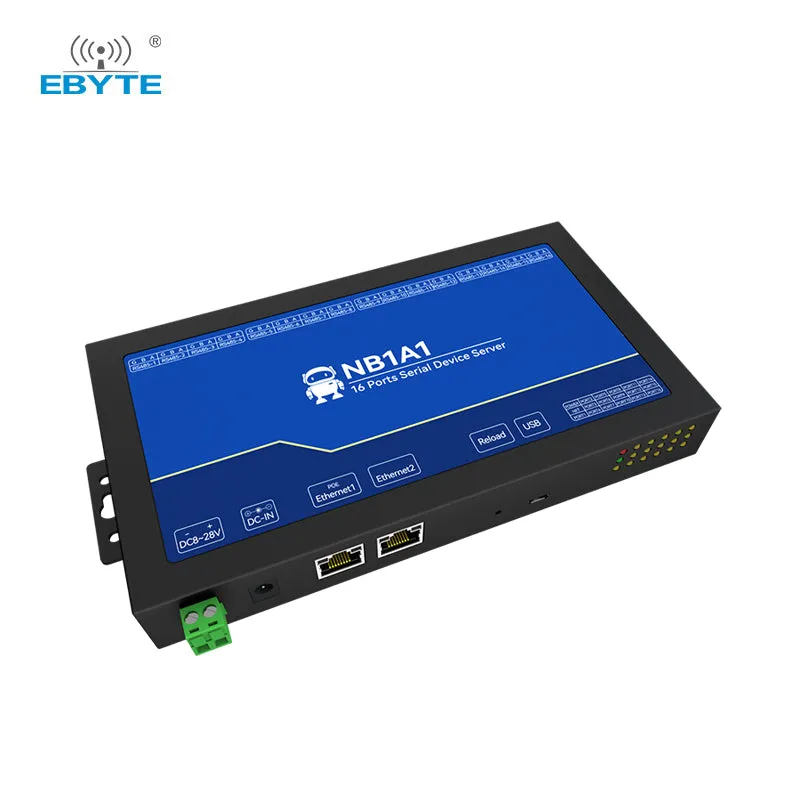

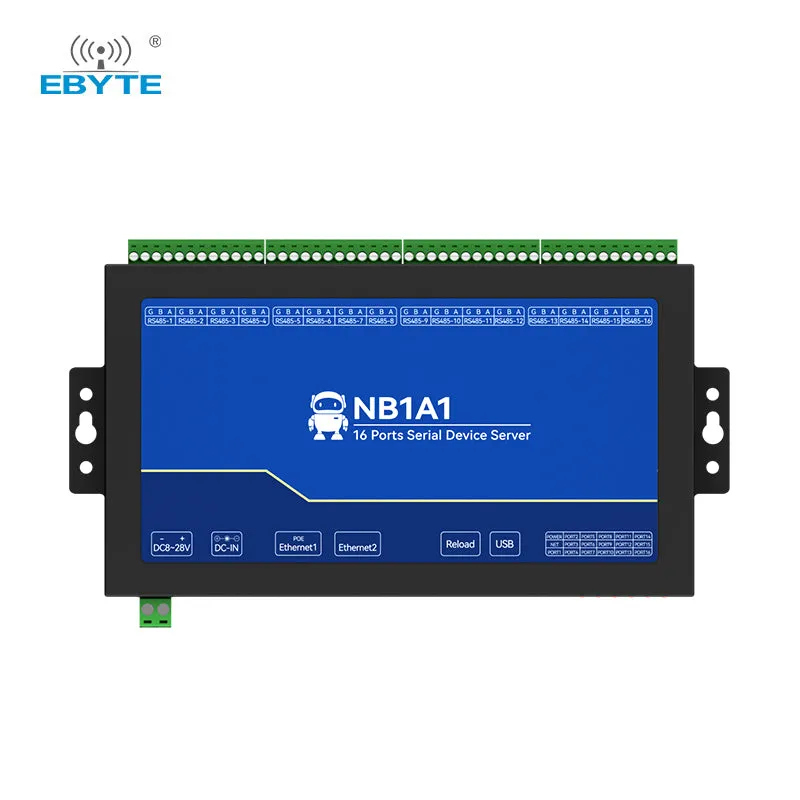

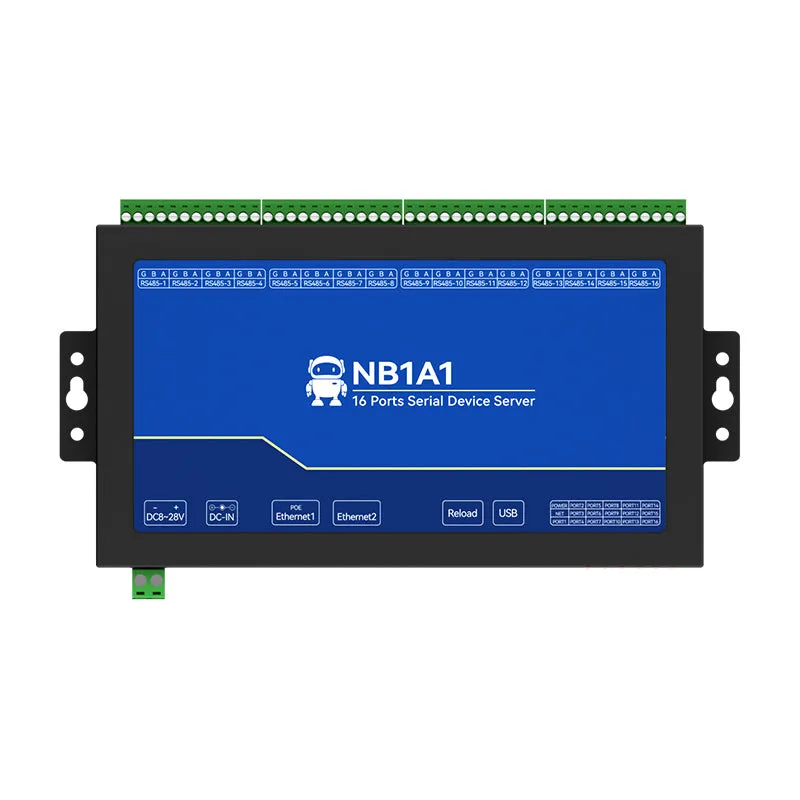

[Introduction]：NB1A1 is a series of serial server products independently developed by Ebyte, which can realize two-way transparent transmission of data from 16-channel serial port to Ethernet port. Supports Modbus protocol conversion, multi-host gateway, storage gateway and other data conversion functions. At the same time, it also supports uploading on-site data to the cloud server to realize the cloud monitoring function. The equipment adopts industrial design standards and supports rapid configuration of host computers and AT commands. It is widely used in computer room monitoring, environmental monitoring, intelligent transportation, barrier control, intelligent express cabinets and other industries.
| Project | Interface | Description |
| power supply | terminal | DC 8~28 V, two interfaces cannot be powered at the same time; |
| Crimping terminal: adopts 2pin Phoenix terminal; | ||
| DC seat | DC seat: straight-in round hole, outer diameter 5.5mm, inner diameter 2.0mm; | |
| Network port | RJ45 | 100/10M adaptive network port |
| Support switch function | ||
| Ethernet 1 supports POE power reception | ||
| serial port | Channel 1 ~ Channel 16 | RS485, 3.81mm Phoenix terminal, supports isolation |

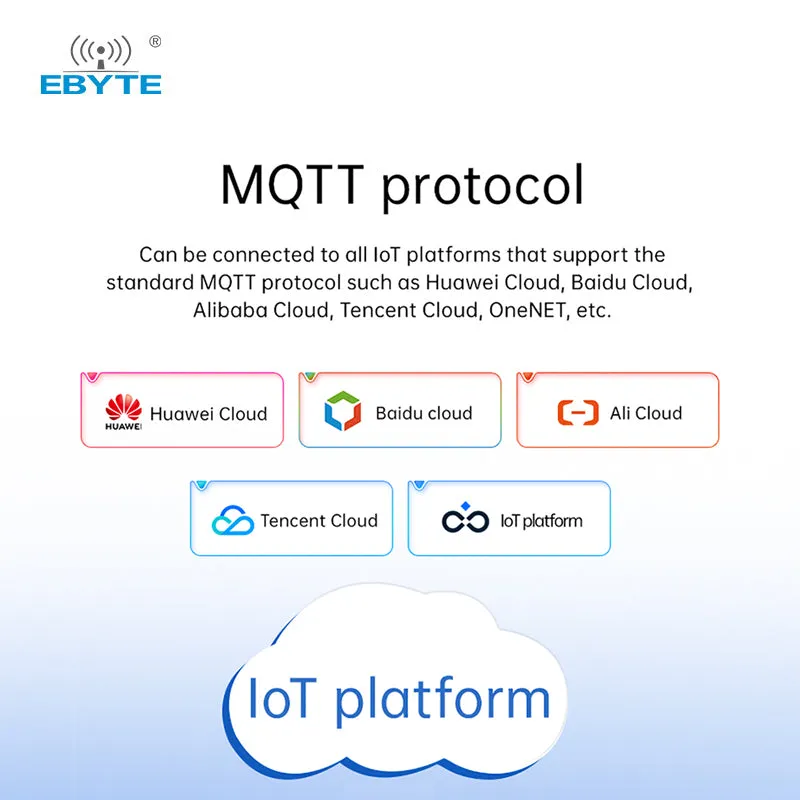

| Operating mode | TCP Server、TCP Client、UDP Server、UDP Client、HTTP Client、MQTT Client（默认 TCP Server） | |
| Network protocol | IP、TCP/UDP、IPv4、ICMP、APR、DHCP、DNS、HTTP、MQTT | |
| How to obtain IP | DHCP, static IP (default static IP) | |
| DNS | Supported, maximum configurable 128 bytes | |
| Configuration method | Configuration tools, AT commands, network AT | |
| IP address | Customizable (default, 192.168.3.7) | |
| local port | Customizable (default, channel 1 ~ channel 16: 8001-8016) | |
| subnet mask | Customizable (default, 255.255.255.0) | |
| gateway | Customizable (default, 192.168.3.1) | |
| Serial port packaging mechanism | 512 Byte | |
| Serial port baud rate | 1200～460800 bps（(default 115200） | |
| data bits | 8 | |
| Stop bit | 1, 2 (default 1) |
|
| Check Digit | None, Odd, Even (default None) |
|
| Installation method | Positioning hole installation |
|
| Product Size | 226mm * 130mm * 28.5mm (L*W*H) |
|
| product weight | 720g ± 5g | |
| Working temperature and humidity |
-20 ~ 65℃, 5% ~ 95%RH (no condensation) |
|
| Storage temperature and humidity | -20 ~ 65℃, 5% ~ 95%RH (no condensation) | |
