Kit contains every component to build the latest head tracker design yourself.  Each head tracker kit includes a $3 donation to Cliff(dlktdr) who made and supports the feature packed open-source firmware this head tracker uses. Two audio jacks and buttons are included so that if you want to upgrade to a later version of the Head Tracker enclosure you can do so without needing additional parts.  This head tracker is 3-axis and can be used for many applications including a , joystick, general purpose angle monitoring, etc. and features a slide-on quick mount system.  Multiple available at

.

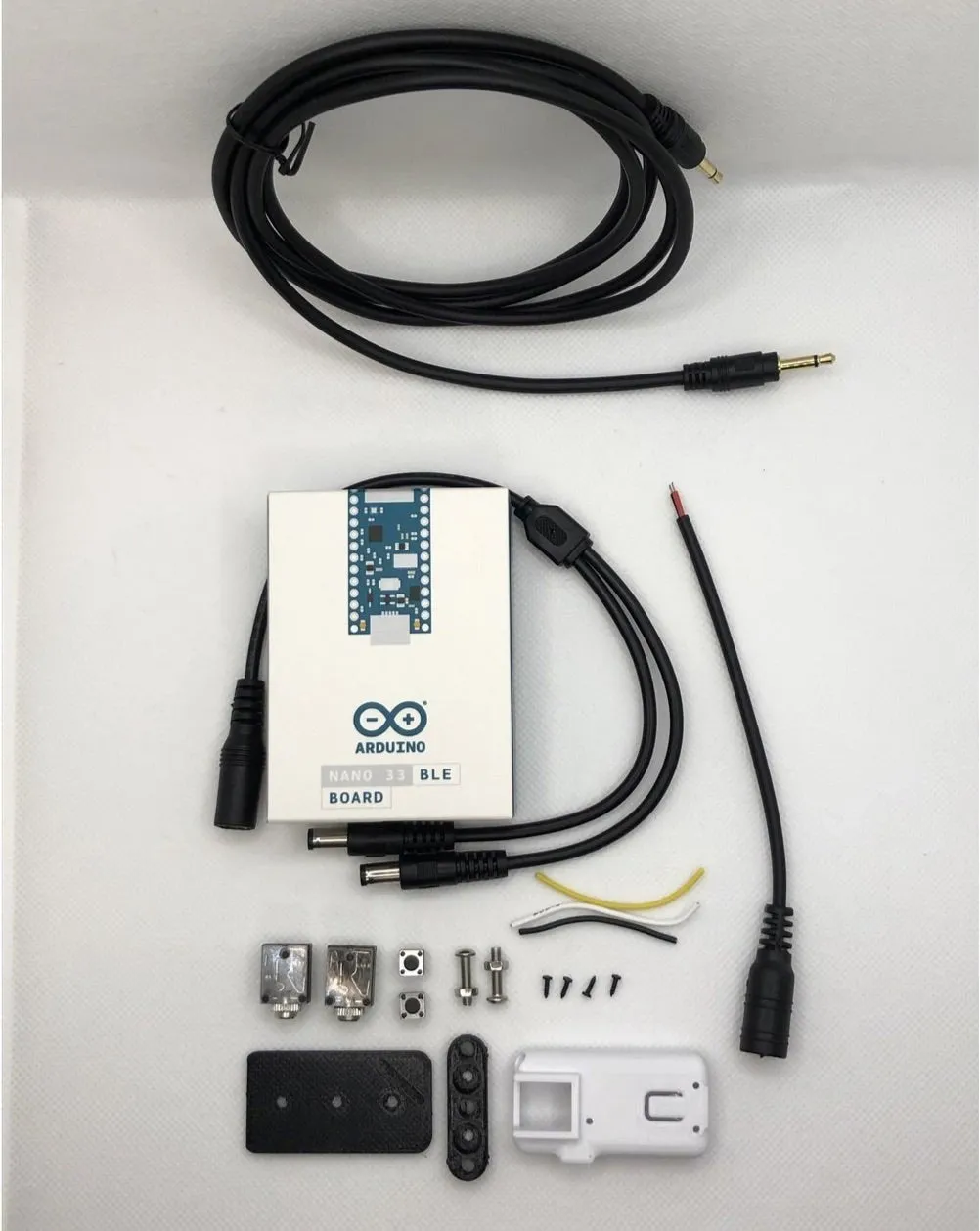

Includes:

1x Arduino Nano 33 BLE

2x 3.5mm Auxiliary Cable Receptacle

2x 6mm Button

1x Barrel Connector Power Splitter

1x 6ft Mono 3.5mm Aux Cable

4x Arduino Mounting Screws

2x Head Tracker Mounting Screws and Nuts

3x Silicone Wires

1x 3D Printed Enclosure, Backplate, and Mount (PLA and TPU) (if included)

Required:

-Soldering tools

-CA or Super Glue

-Connects to transmitter via 6ft 3.5mm mono aux cable, please ensure your transmitter has a 3.5mm trainer port, there are other options such as , , and  but those are only recommended if a 3.5mm trainer port (PPM) is not available. The second channel on the 3.5mm aux is already wired for SBUS on pre-builts.

Known Supported Transmitters (have 3.5mm trainer ports, SBUS input, or FrSky PARA Bluetooth):

-Radiomaster TX16S, Zorro, etc.

-Jumper T12, T18, T8SG, etc.

-FrSky Taranis X9D, QX7, etc.

-Spektrum iX12, ect. (Follow  for Spektrum setup)

-Many Others (Check your transmitter manual)

case design is open-source and is a remix of design by which is licensed under the
