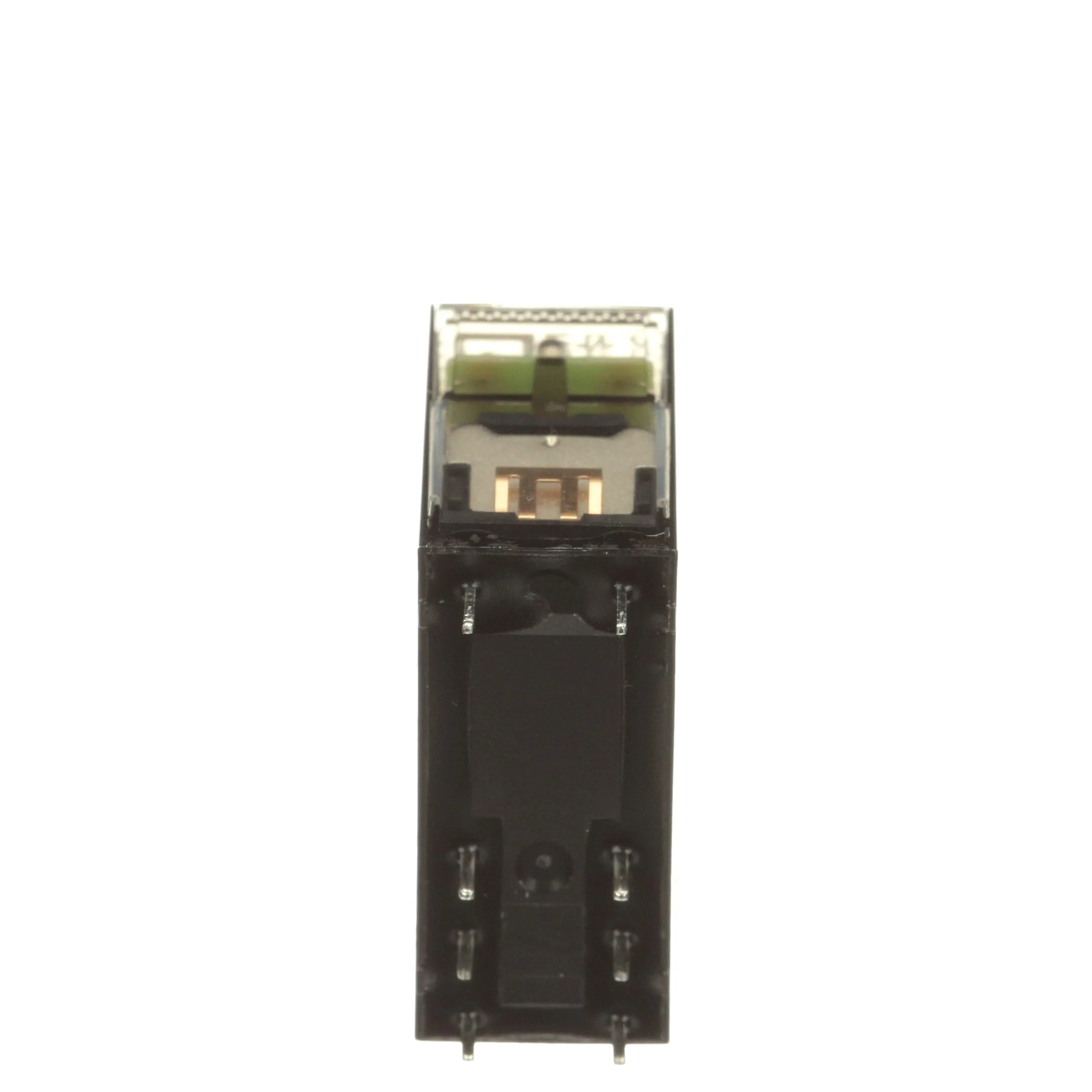

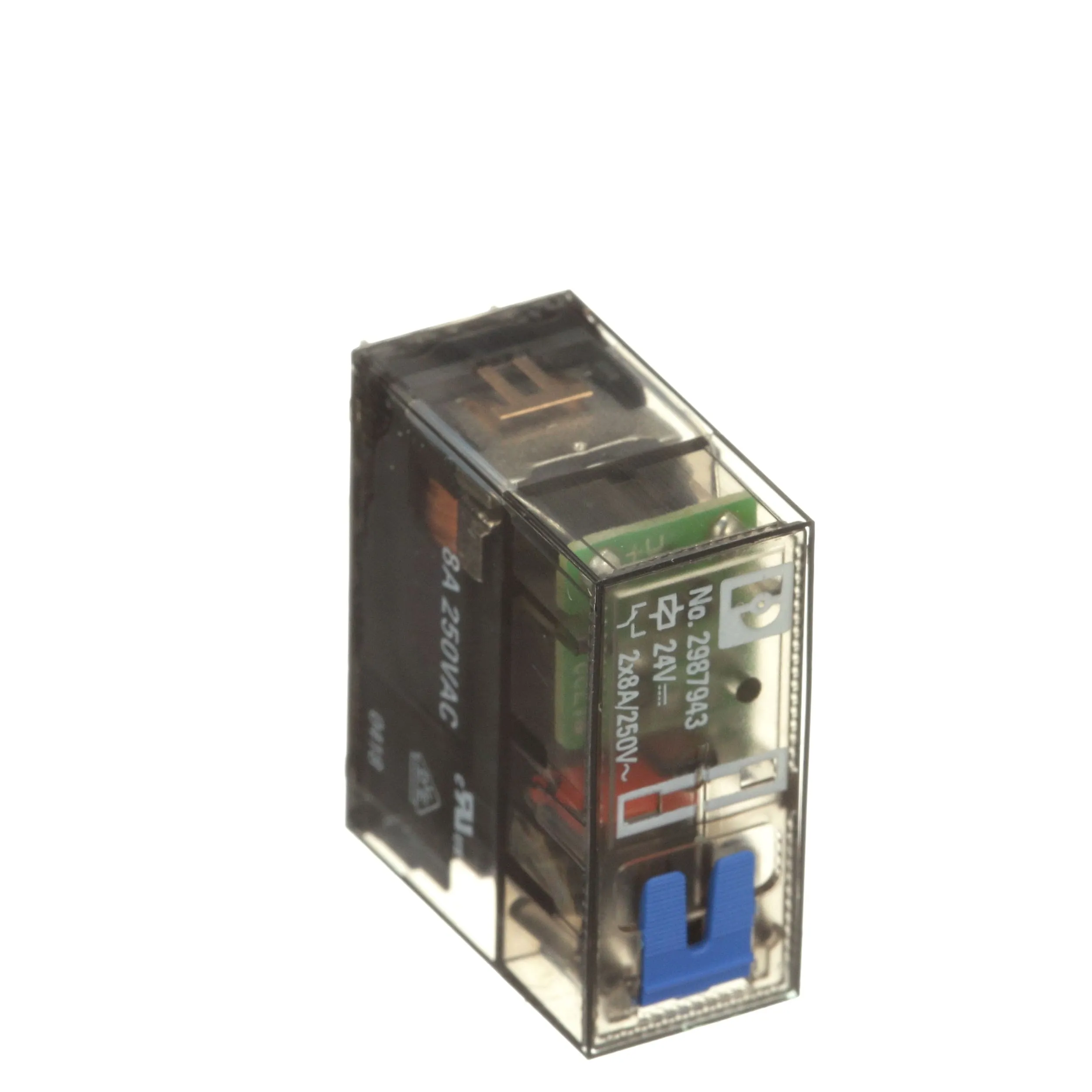

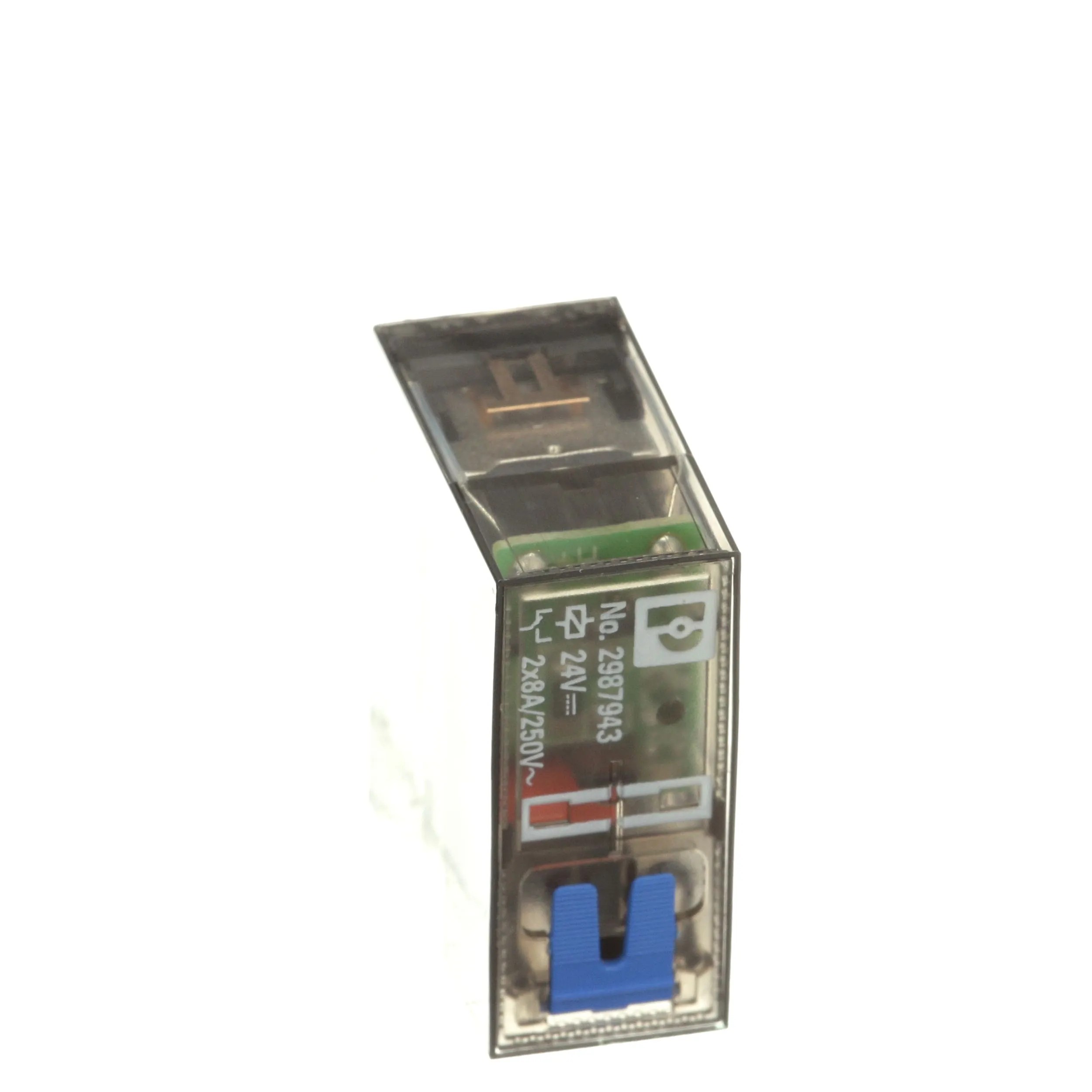

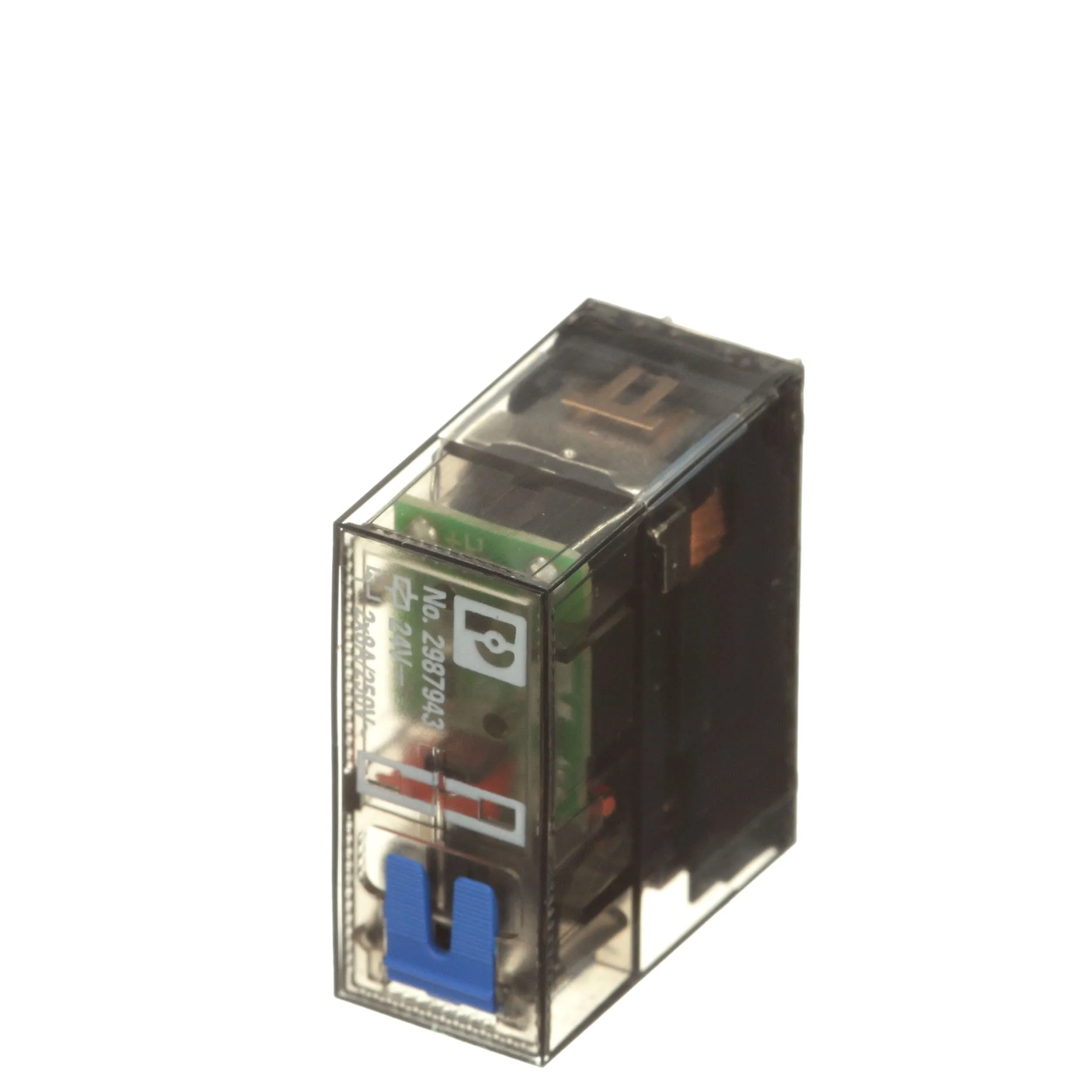

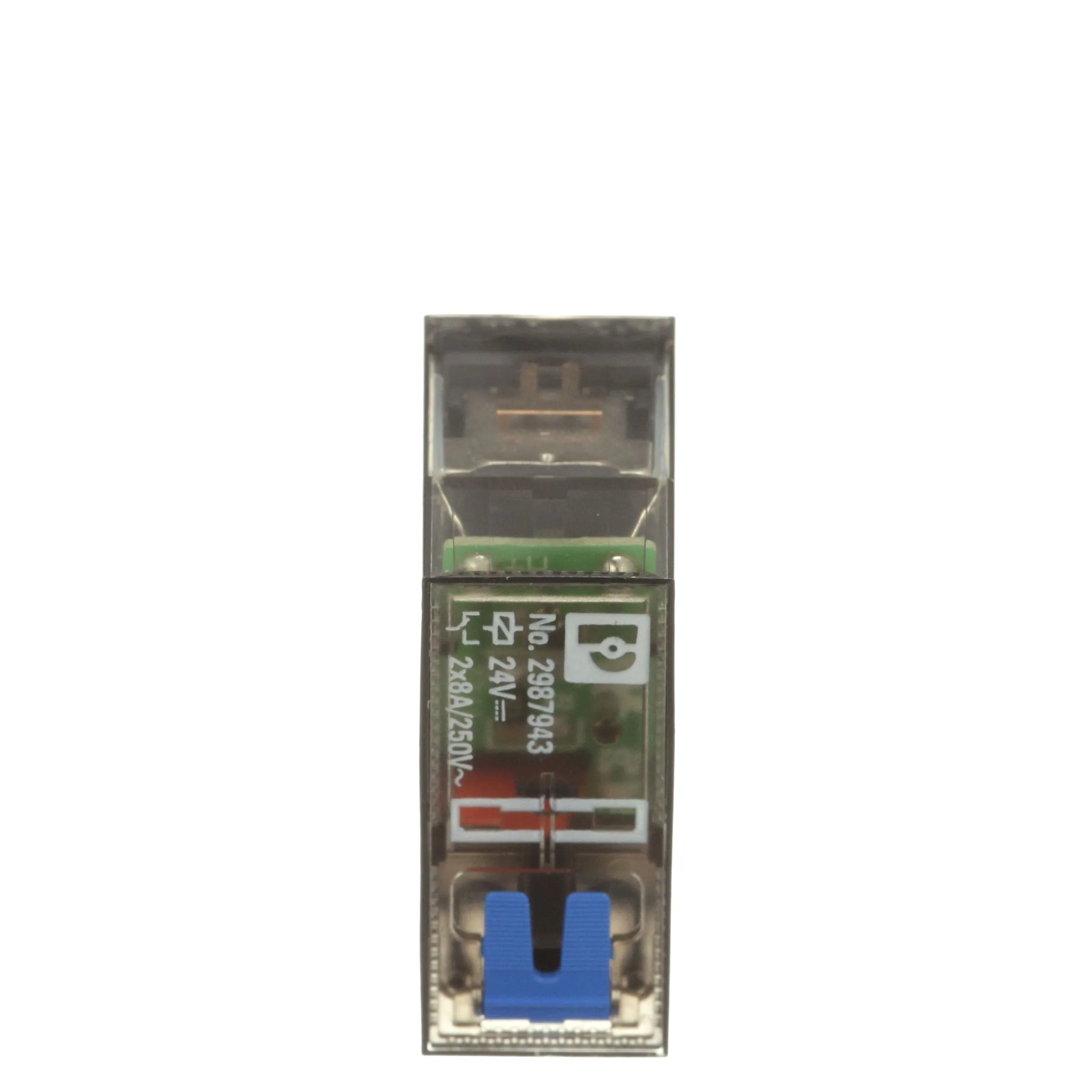

| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | REL-MR- 24DC/21-21/MS |
| Contact Form | DPDT |
| Current Rating | 8 A |
| Mounting Type | Through Hole |
| Relay Type | Electromechanical Relay |
| Series | |
| Termination | PCB |
| Type | Relay |
| UPC Code | 4046356480659 |
| Voltage Rating | 24 VDC |
| Voltage, Control | 24 VDC |
| Width | 12.7 mm |
Overview
Phoenix Contact PLC Series - Programmable Logic Relay System:
On the logic module market, the PLC logic relay system is the first to combine logic, interface, and field connection levels in a single solution. This means that you can switch and control I/O signals using a single compact system.You can combine the logic module with the corresponding relays and analog modules as required. The modular structure opens up a wealth of applications. You can flexibly extend the system, thanks to the wide choice of different modules. In addition to the basic module, extension modules are also available for more complex tasks. Eight freely-selectable PLC-INTERFACE terminal blocks are available for each logic module. Acquire and switch up to 48 I/O signals with one basic module and two extension modules.
Features:
Components of the PLC Series - Programmable Logic Relay System:
1) Basic module
PLC logic processes 16 I/O signals with just one basic module, with an overall width of just 50 mm.
2) Extension modulesThe basic module and the extension module are connected via integrated connectors - no tools required.
3) Memory module
Save programs or easily copy them to other devices.
4) Relay and analog modules
The modular design with the widest variety of relay and analog modules enables channel-specific assembly.
5) PLC logic app
Easy and quick parameter adjustments and monitoring via app for iOS and Android. Thanks to the app and the corresponding Bluetooth adapter, you can access the process data quickly and wirelessly.
