Portable V2 SteamMate

Inline Water Heater for Carpet Cleaning

Provides instant heat.
Steam-boost your carpet cleaning machine for maximum cleaning power.
Clean faster.
Clean drier.
More stain removal power.
Provides instant heat.
Remove multiple pieces of ground-in aged gum from carpets quickly and easily using .
Designed and manufactured in the UK by Ashbys.
Order a replacement Solution Intake Hose .

This video was kindly sent in by Adam Loskot of A&K Cleaning Services, demonstrating the heat performance from his Enforcer with V2 SteamMate inline heat exchanger.

Instant heat for your carpet cleaning machine

Steam-boost your carpet cleaning with the most powerful in-line copper-coiled heat exchanger available - capable of adjustable temperatures up to 110°C.

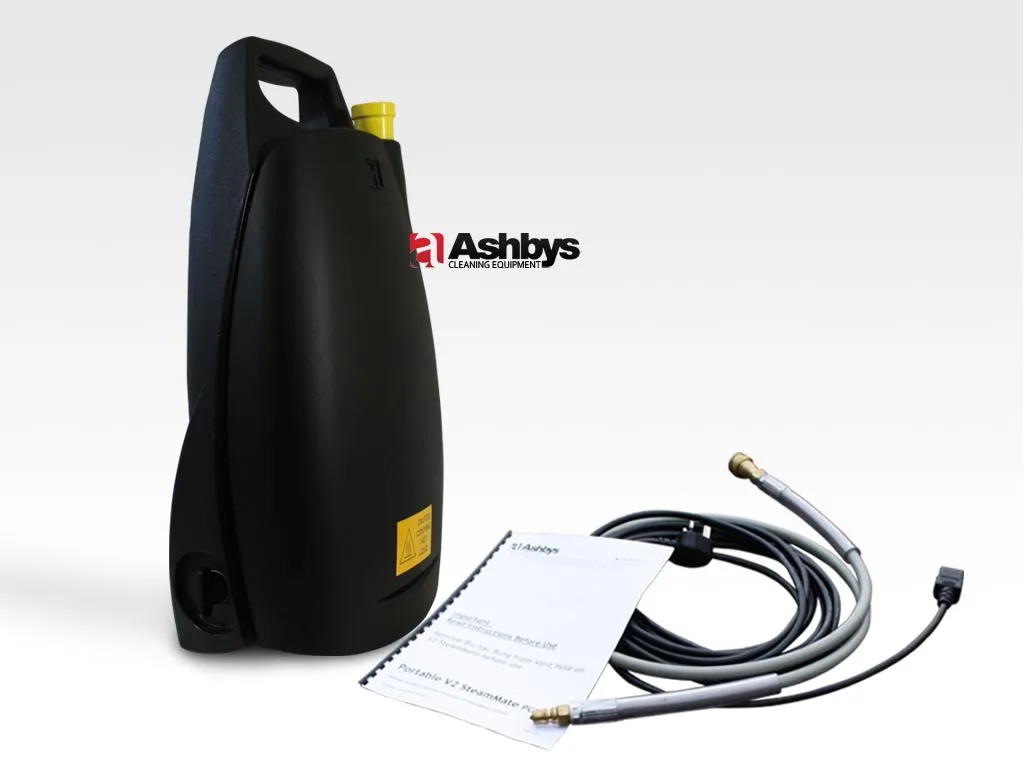

Includes

1 x Portable V2 SteamMate unit
1 x Intake Hose – with chosen connectors
- connects carpet cleaning machine to Portable V2 SteamMate
1 x 25 ft / 7.6 m Power Lead
1 x Instruction Manual
1 x 1 Year Warranty

Engineered with total safety in mind

Ashbys V2 SteamMate heat-exchanger has a unique safety pressure-relief system, which allows it to achieve high temperature safely. If you’re considering a unit with no pressure-relief system and it achieves 110°C, dangerously high pressures will occur. Make sure you ask how much pressure is trapped in your solution hoses at 110°C, especially if working with a 400 or 600 psi pump, for example.

How does the Portable V2 SteamMate work?

Links in-line with your existing carpet extraction machine and instantly boosts the cleaning solution temperature - see the Product Video. It produces instant controllable heat to remove chewing gum and other hard residues plus cut straight through greasy, heavily soiled carpets without the need for multiple passes, avoiding over-wetting.

Will the Portable V2 SteamMate work with my carpet cleaning machine?

Yes - if your carpet cleaning machine has a pump pressure of 135 to 600 psi. If you’re working with less than 135 psi, you’ll need to upgrade your machine to use this system.

Selecting the correct connector option

The Portable V2 SteamMate comes with an inline hose that has a built-in filter for water intake. You can connect it directly to your machine or place it in a series of solution hoses. Check the water output connector on your carpet cleaning machine. If it has a female connector, typically found on Ashbys machines, select the ‘I have a FEMALE water connector fitted on my carpet cleaning machine’ option. If it’s a male connector, choose the ‘I have a MALE water connector fitted on my carpet cleaning machine’ option. Your unit will arrive ready to use with the appropriate connectors for your existing setup. Simple!

This video shows Russ Chadd of Prosteam UK, carpet cleaning with his Ashbys 400 psi Enforcer and V2 SteamMate inline heat exchanger.

This video demonstrates the heat performance from V2 SteamMate inline heat exchanger.

Why is the Portable V2 SteamMate different?

Ashby Cleaning Equipment have manufactured in-line heat exchangers for the professional carpet cleaning industry for the past 20 years. Our heating systems have evolved setting industry benchmarks for performance and heat. The Portable V2 SteamMate works better. Why?

Because it’s built without compromise by ourselves - and we designed it to be better.

More heat efficiency

Cleaning solution flows through a unique 15 metre copper coil heat-exchanger wrapped around a heated core. This design is dramatically more efficient than a regular hot box system, where cleaning solution flows rapidly through a channelled heated metal block, which then cools down. Our design produces high-heat, even when cleaning at pressures up to 600 psi – see the video.

Unique safety venting tank

Heating cleaning solution causes it to expand and creates very high pressures. Ashbys Portable V2 SteamMate system will achieve temperatures of 110°C if required. This gives more effective quicker cleaning, with less detergent and cleaning solution – meaning you work drier.

Our Portable V2 SteamMate vents the excess pressure created during the heating process, into a unique built-in safety venting tank. Systems without this safety venting tank are either not achieving the same high temperatures (and therefore not creating such high pressures); or running a serious risk of dangerously high pressure building up in the equipment, tools and hoses if the thermostat fails.

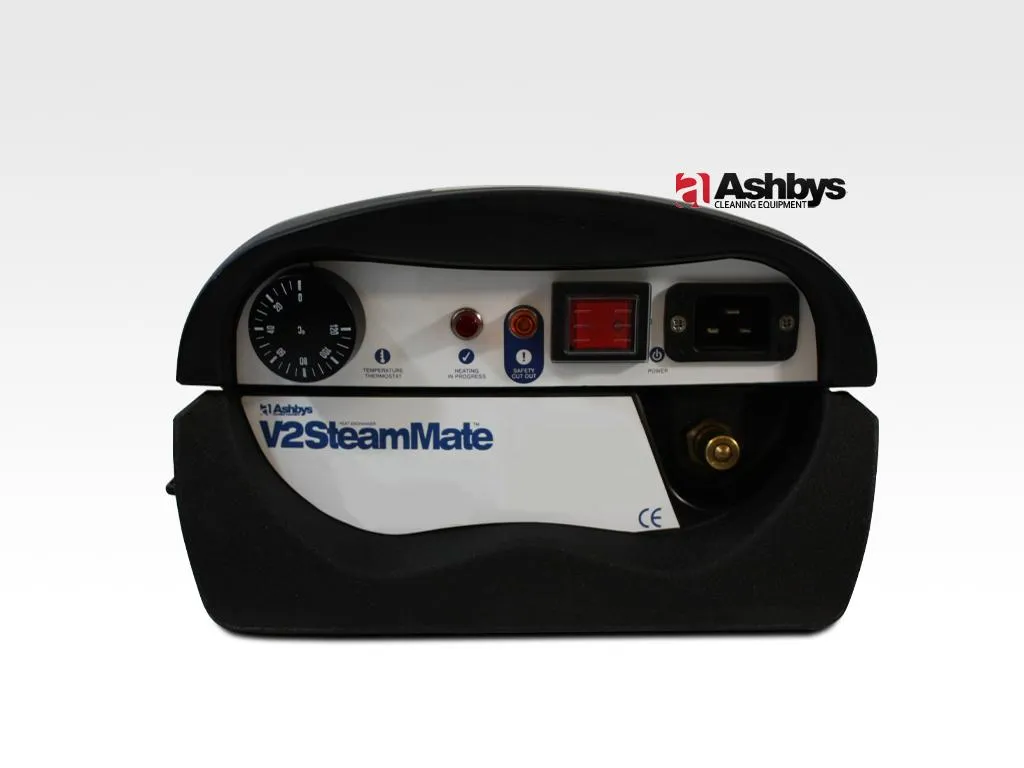

More temperature accuracy - fully adjustable from 0-110°C

Simply set the desired working temperature using the adjustable thermostat. The Portable V2 SteamMate achieves a high degree of temperature accuracy by monitoring the output temperature of the cleaning solution and regulating the heat-exchanger accordingly.
